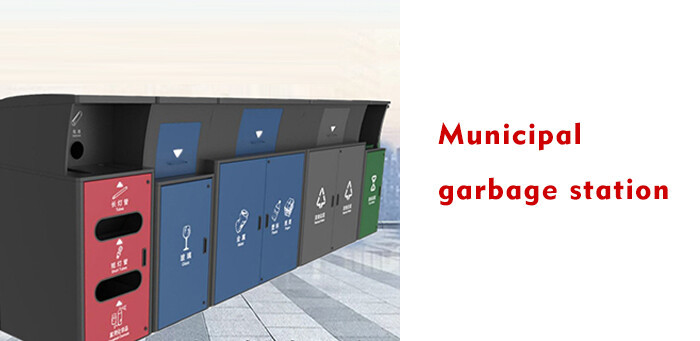

Shenzhen's new standard urban village street community stainless steel five-category trash cans are composed of five categories of stainless steel trash cans: hazardous waste, glass, metal plastic paper (short for metal, plastic, and paper), kitchen waste, and other waste. Among them, the daily production of metal plastic paper and other garbage is large, so the classified collection container must also be large, and a 660L large-capacity plastic trash can can be placed as an inner bucket to collect garbage. In September 2020, the Shenzhen Urban Management Bureau issued the technical guidelines for the centralized classification and delivery point equipment for domestic waste in residential communities (urban villages). All street offices responded positively and found the Xinfang Shenzhen trash can manufacturer to customize it according to the standard and put it in use in the near future.

Shenzhen's new standard urban village street community stainless steel five-category trash can model is F434, with specifications: single barrel 740*900*1700mm, classification barrel 1600*900*1700mm. Among them, the hazardous waste bin is not equipped with an inner barrel, and the other classification barrels are composed of a metal outer cover and an inner barrel, and the inner barrel is equipped with a HDPE new material plastic trash can. Stainless steel classification trash cans can be added according to the actual situation of the centralized classification delivery point, the placement order can be adjusted according to the delivery needs, and the combination method can be optimized according to the site conditions. The main material is 201 stainless steel, the bottom plate material thickness is 2.0mm, the outer cover material thickness is 1.5mm, and the internal component material thickness of the hazardous waste classification barrel is 1.2mm.

Shenzhen New Standard Urban Village Street Community Stainless Steel Five-Classification Trash Can Production Standard Parameters:

Hazardous Waste Classification Collection Bin

1. Color Standard: PANTONG Black C Orange Grain, PANTONG 485CVC Fine Sand Grain.

2. The interior is equipped with battery, long lamp tube, short lamp tube, household chemical drawer, and handle; the long lamp tube drawer is installed with a bevel angle of 56°.

3. The door is equipped with 3 hinges and a reinforced structure, and the rotation angle reaches 120°; the upper and lower parts are equipped with door locks, and the middle part is equipped with a hidden buckle.

4. The household chemical drawer is equipped with a guide bevel of 250mm, tilted downward by 30°;

5. Protective rubber strips are set at each delivery port.
